Iron Tag 300 Rugged Iron Tag 300 Rugged Temperature and Pressure Data Logger
A reusable external-probe logger for dry ice, ultra-low freezers and specialist cold-chain applications. It combines real-time LCD status, configurable alarms, temporary reporting and automatic PDF/CSV output.
Introduction
The Iron Tag 300 is a rugged, reusable Iron Tag 300 Rugged Temperature and Pressure Data Logger developed for demanding industrial, laboratory and sterilisation processes. Its S316 stainless-steel case protects the logger from corrosion, pressure, moisture and harsh process conditions, while its IP68 rating allows submersible operation.
It measures temperatures from -50°C to +150°C and is available with pressure ranges of 0–100 psi, 0–300 psi or 0–500 psi. The logger stores 16,000 temperature readings and 16,000 pressure readings for detailed process mapping and validation.
Parameters can be configured before deployment, including logging interval, start delay and high/low alarms. After the process, connect the logger through USB Type-C to retrieve graphic and tabular PDF, CSV or combined reports.
Key Features and Benefits
S316 stainless steel
Corrosion-resistant enclosure for harsh industrial and sterilisation environments.
Temperature and pressure
Records both process variables for complete cycle validation.
High-temperature operation
Works from -50°C to +150°C.
Flexible pressure ranges
Choose 100, 300 or 500 psi according to the application.
IP68 submersible
Suitable for wet, pressurised and steam-based processes.
Programmable alarms
Configure high and low alarm thresholds.
Temporary reports
Retrieve interim process data when required.
USB Type-C
Simplified configuration and report retrieval.
How It Works
Typical Applications
- Medical device sterilisation
- Steam sanitisation

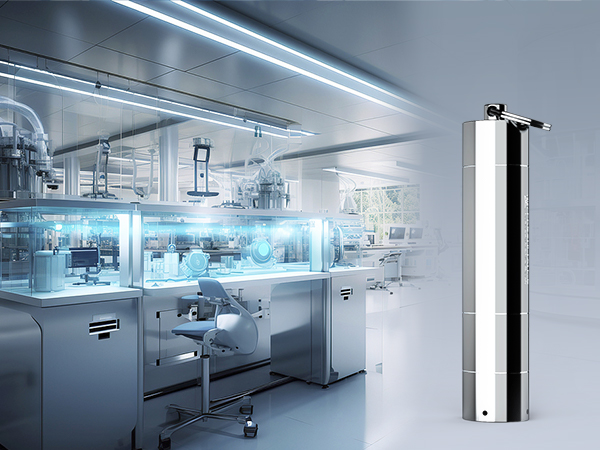

- Laboratory autoclaves

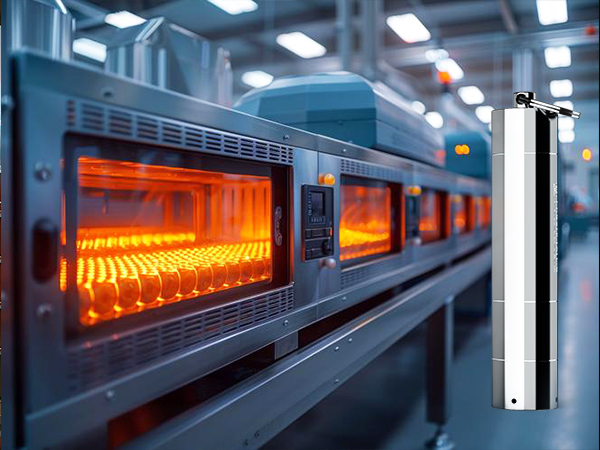

- Oven profiling

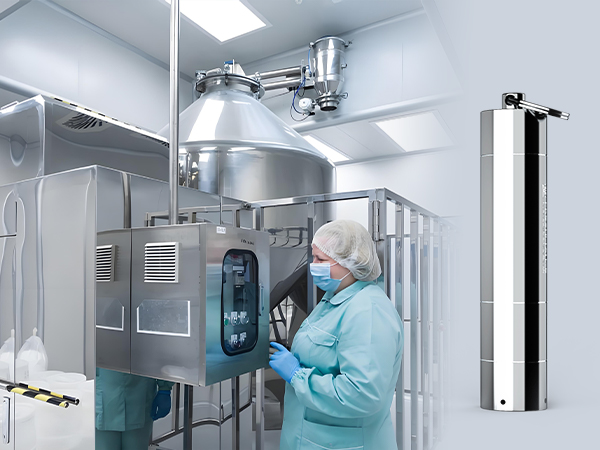

- Pharmaceutical manufacturing
- Food processing and retort validation
- Textile printing and dyeing
- Industrial process monitoring
Iron Tag 300 Specifications
| Product | Iron Tag 300 Rugged Iron Tag 300 Rugged Temperature and Pressure Data Logger |
|---|---|
| Type of Use | Multi use |

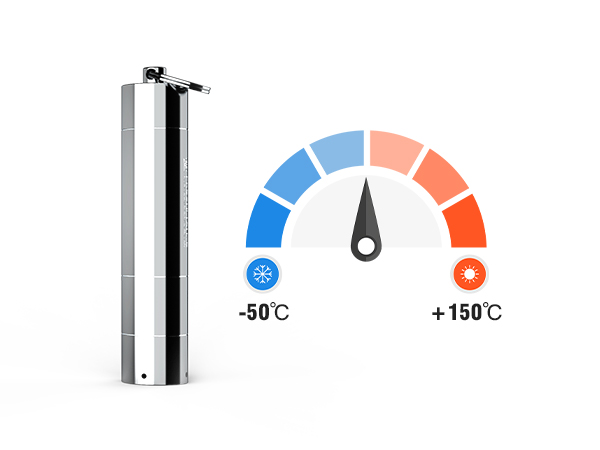

| Temperature Range | -50°C to +150°C |
| Temperature Accuracy | ±0.5°C |
| Pressure Range | 0–100 / 300 / 500 psi |
| Pressure Accuracy | ±0.25% |
| Logging Interval | 1 minute to 24 hours |
| Start Delay | 0 minutes to 24 hours |
| Memory | 16,000 readings each for temperature and pressure |
| Alarms | High and low alarm |
| Display | LED |

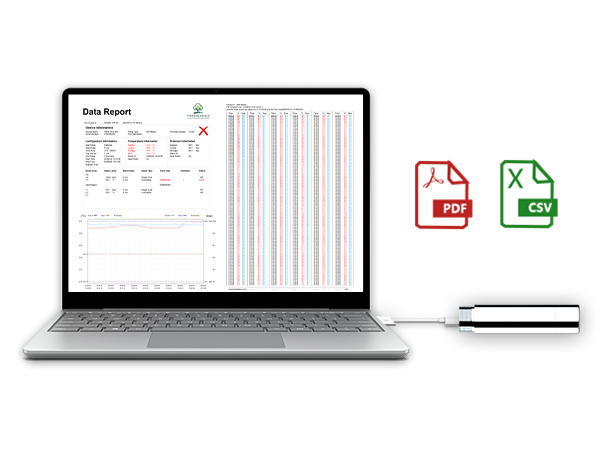

| Report Format | PDF / CSV / PDF & CSV |
| Connection | USB Type-C |
| Battery | Replaceable 3.6 V lithium battery |
| Battery Life | Maximum 2 years |
| IP Rating | IP68 |
| Material | S316 stainless steel |
| Dimensions | Ø26 mm × 122 mm |
| Weight | 435 g without battery; 450 g with battery |
| Standards | EN12830, HACCP, GMP and DO-160 applications |
Freshliance Tools
Freshliance Tools configures, retrieves and analyses Iron Tag 300 temperature and pressure data through USB Type-C. Users can set logging intervals, start delay, high and low alarms and report options before deployment.
After a process cycle, temperature and pressure values can be reviewed in graphs and detailed tables. PDF, CSV and combined reports support sterilisation validation, autoclave qualification, oven profiling and quality documentation.
Device configuration
Set intervals, delay, alarms and reporting.
Type-C detection
Read device status and configuration.
Process analysis
Review temperature and pressure graphs.
Compliance reports
Export PDF and CSV validation records.
